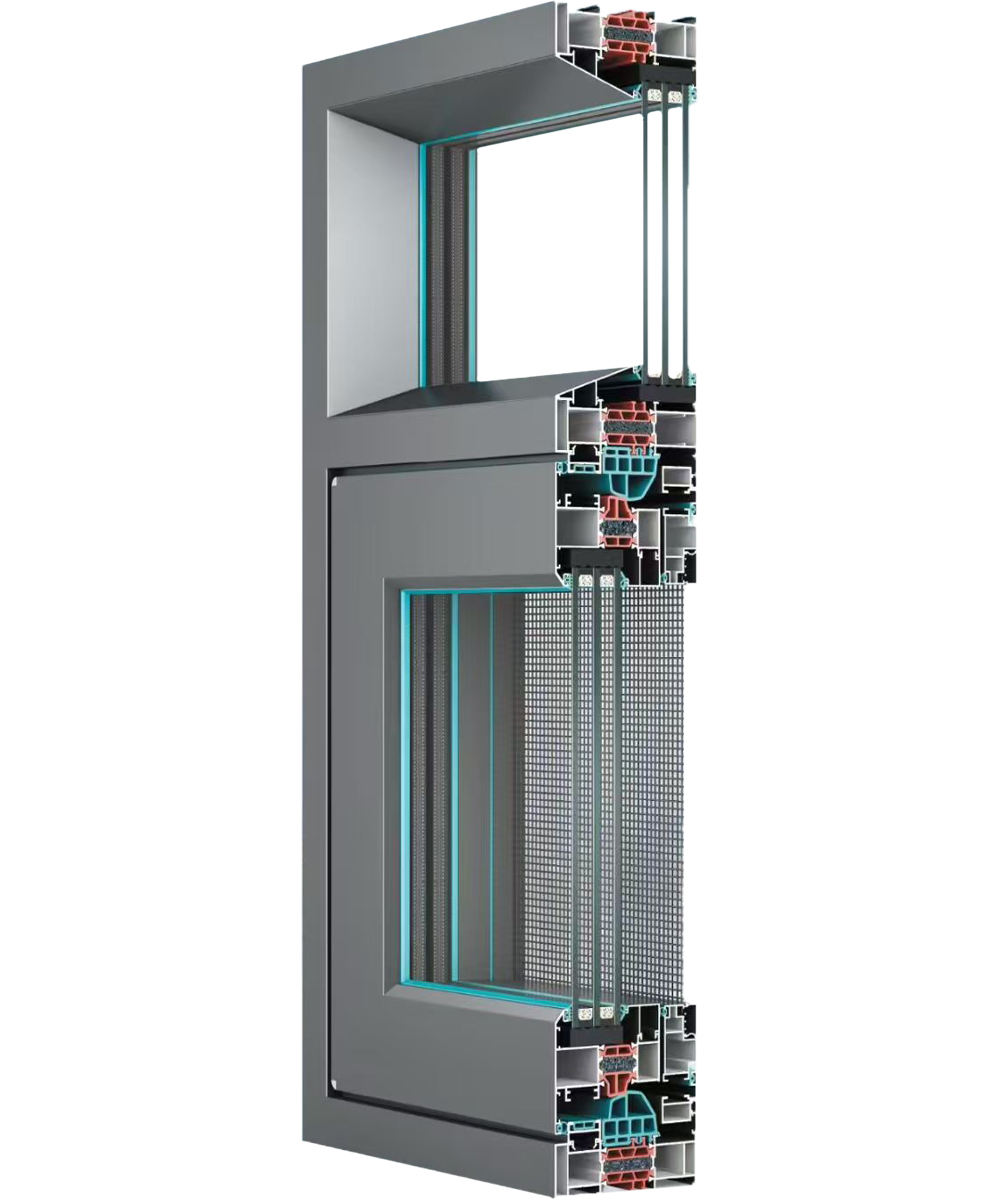

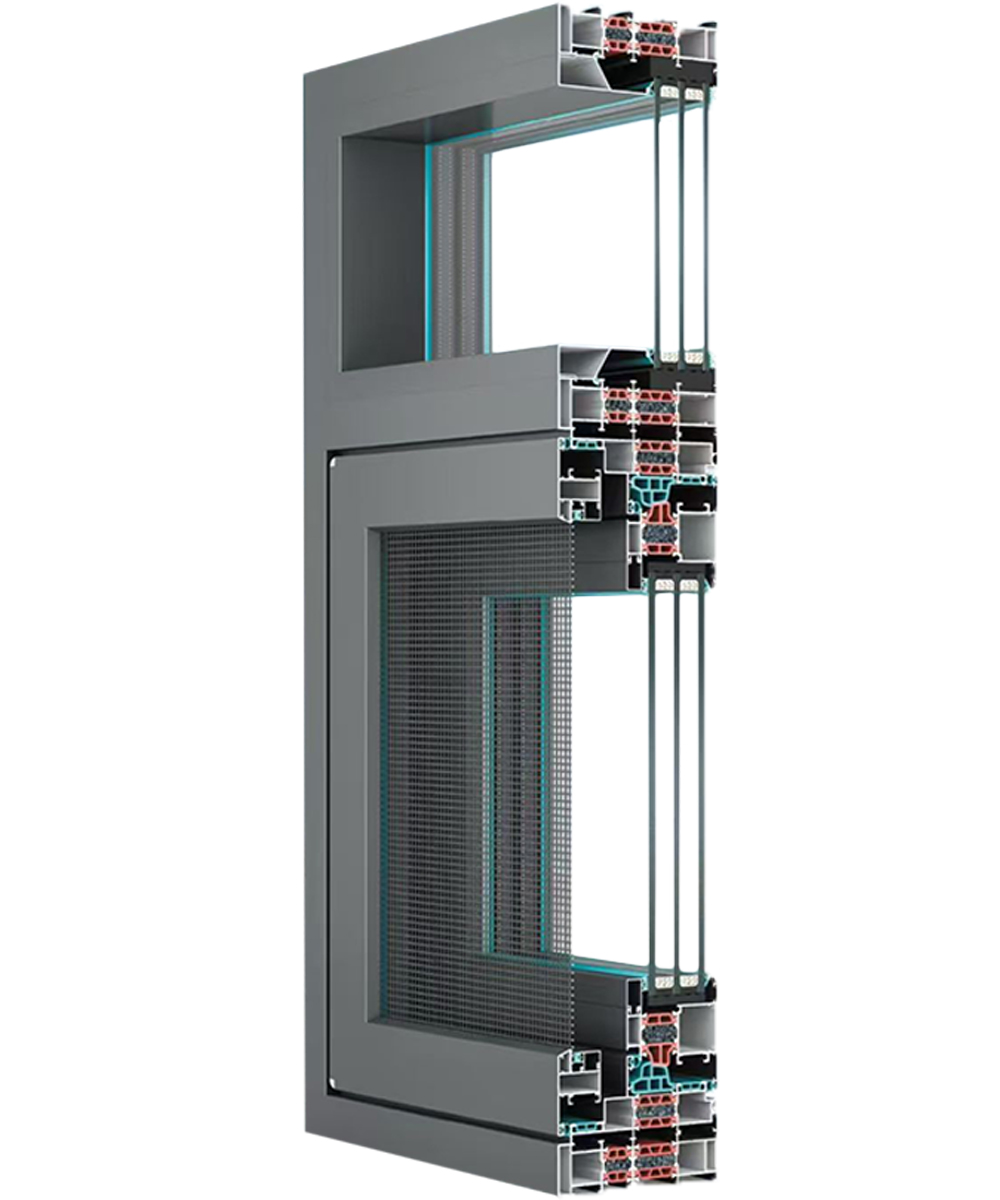

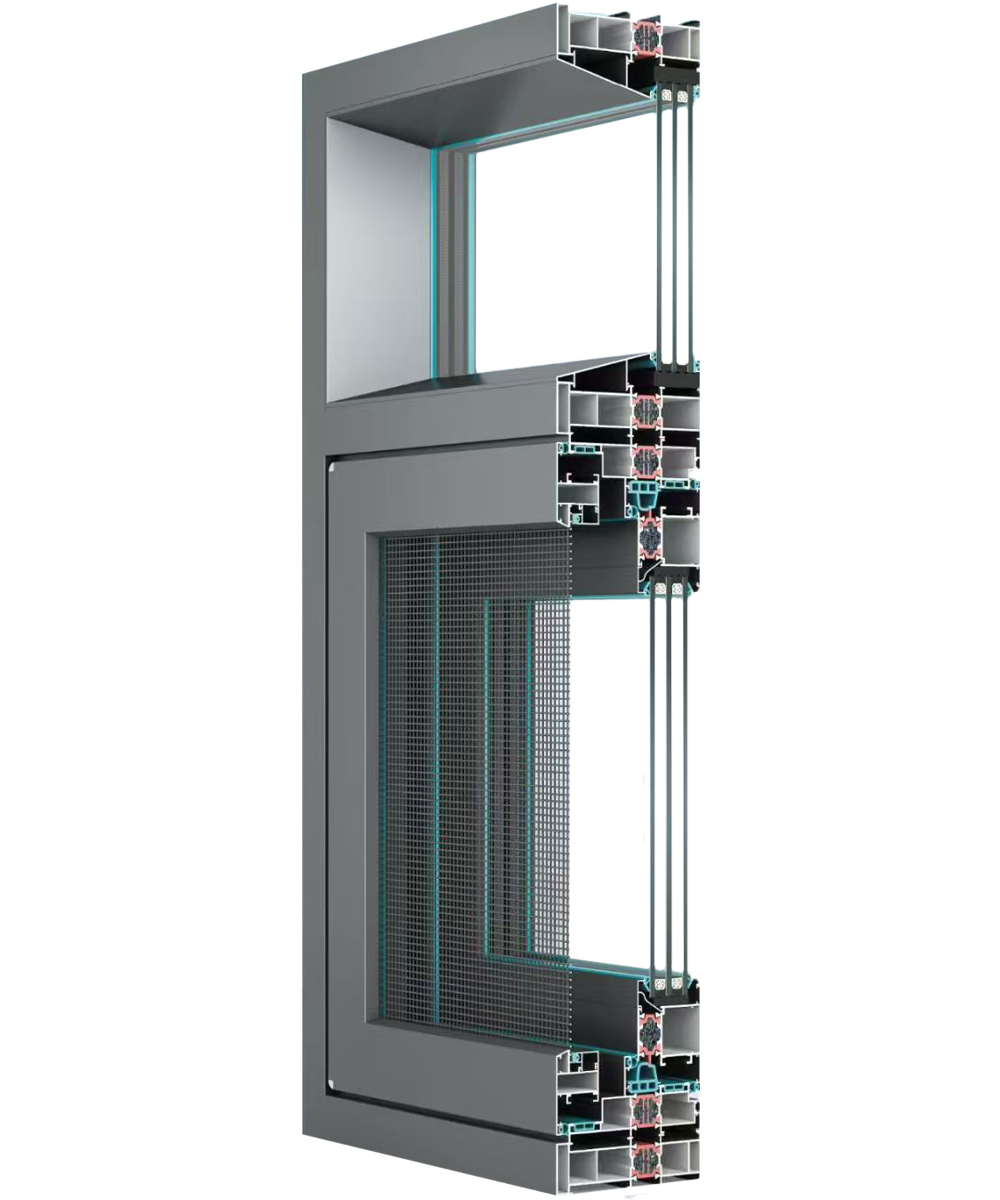

108 Series - External Window System
1. Ultimate insulation and sound insulation, suitable for harsh environments
The 108 series wide profile, combined with three glass and two cavity glass, has a much higher thermal and sound insulation performance than single/double glass configurations, which can significantly reduce outdoor noise (with a sound insulation volume of over 40dB), while blocking the conduction of cold and hot bridges, reducing heat loss in winter and isolating external heat waves in summer. It is suitable for use in areas facing streets, highways, high cold or hot weather.
2. Steel yarn integrated design, balancing safety and practicality
The steel mesh is integrated with the window frame, without the need for additional disassembly and assembly of the screen window. The steel mesh has high strength and has anti-theft, anti pry, anti falling object, and anti insect functions. Even elderly and children can safely open windows for ventilation at home; The internal opening steel mesh is also easy to clean, avoiding the hidden danger of loose and falling off external mesh windows.
3. The structure is stable and resistant to wind pressure, suitable for large-sized window types
The wall thickness of 108 series profiles is usually ≥ 1.8mm, the cavity structure is regular and has strong load-bearing capacity. Although the three glass glass has greater weight, the profiles can be stably supported, and the wind pressure resistance level is high. It is not easy to deform when used in high-rise residential buildings and coastal windy areas, which can meet the design requirements of large french window and observation windows.
4. Strong sealing and waterproof performance, easy maintenance
Multi channel sealing strips combined with multi cavity drainage structure of profiles can effectively prevent rainwater leakage; The flat surface integrated with steel yarn has no excessive gaps or dead corners, making daily wiping and cleaning more effortless; The concealed design of profiles and hardware reduces the erosion caused by sun and rain, and extends the service life of the entire window.
